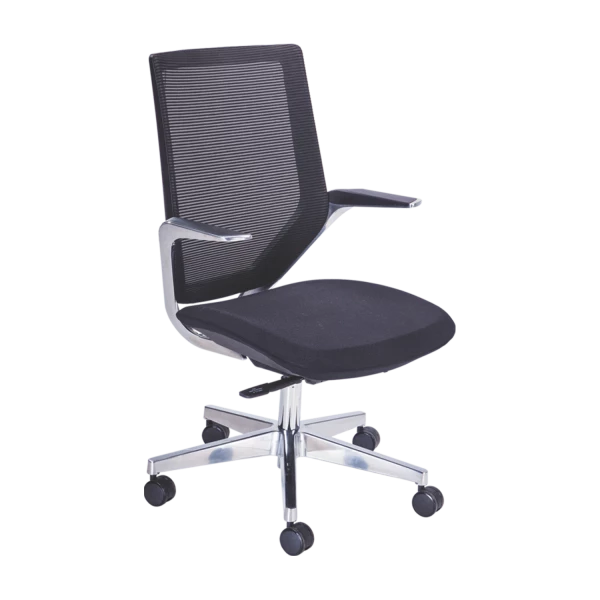

Vortex 1

High Back Chair, Aluminum Arm With PU, Gas Lift,

Aluminum Base, Mesh Back & Seat Fabric Tapestry

Enter Quantity

Add To Enquiry Cart

Overall Dimensions (in mm)
Overall Height	1120 mm	Overall Depth	700 mm
Seat Depth	540 mm	Back Height (From Seat)	740 mm
Seat Width	535 mm	Back Size	765 mm
Seat Height	430 mm	Back Width	480 mm
Outer Width	620 mm	Inner Width	490 mm
Height Adj. (Gas Lift)	120 mm	Gas Lift Type	BIFMA standard class - 3

Seat & Back
Seat Ply Type	Hot Pressed	Back Ply type & Model No	NA
Seat Ply thickness	15 mm	Back Ply thickness	NA
Seat foam type, thickness & density	Moulded PU Foam having density 45 Kg/m³	Back foam type, thickness & density	NA
Seat Cover	NA	Back Cover	PP
Seat Tapestery, Colour & thickness	Fabric	Back Tapestery, Colour & thickness	Net
Seat & Back Type	Individual

Armrest
Armrest Type, Model No	Fixed	Armrest Material	Aluminium Base
Armrest Length	260 mm	Armrest Width	65 mm
Armrest Height	200 mm	Armrest fixing type	Fixed with back
Arm top finishing	PU	Arm Movement	NA

Mechanism & Features
Chair Mechanism type	Synchro Knee Tilt	Revolving/ Fixed	Revolving
Type of Locking	Multipoint Locking	Tilt Tension Adj.	Yes
Lumbar Support	Yes	Spine joining seat & back	Yes
Head rest provided at back	Yes

Chair Understructure
Pedestal Material	Die Cast Aluminium	PCD of Pedestal	650 mm
Cladding & finishing	NA	Types of Castors	60mm twin wheel, Nylon, Injection moulded
Legs/Support in case of fixed chairs	NA
